Cisco SPA502

Rating

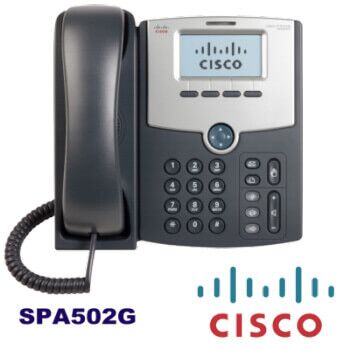

Cisco SPA502

The Cisco SPA502G is a single line VoIP phone that is PoE capable and supports HD Voice with display.Cisco SPA 502 having Comprehensive Interoperability and SIP-Based Feature Set. SPA502 best suited for  business or home office use.With hundreds of features and configurable service parameters, the Cisco SPA502G addresses the requirements of traditional business users while building on the advantages of IP telephony.



Description

Cisco SPA502 IP Phone

IP Phone Cisco SPA502G supports two communication protocols VoIP: SPCP protocol for working with the Cisco UC500 and SIPv2 protocol for working with traditional s VoIP services and SIP PBX.

Technical Specifications:

  • LCD (Black)
  • 2 port s 10 / 100BASE-T RJ-45 Ethernet  (IEEE 802.3)
  • The handset RJ-9
  • Built-in speaker and microphone
  • 2.5mm Headset Jack
  • LEDs / buttons:
  • Illuminated buttons: Audio Mute On / Off Headset On / Off, Speakerphone On / Off



SPA 502 SPECIFICATIONS
Work
Model IP
Connection parameters
Speaker Y
Location dialer base
Mute Y
Telephone exchange
Conference call capability Y
Speed dialing Y
Redialling Y
The ability to forward calls Y
Call Blocking Y
Dialing on-hook Y
Call waiting Y
Call on hold Y
Call log entries Y
Pointing
The indicator on the handset Y
The indicator-based Y
The display
Screen Type LCD
Resolution 128 x 64 pixels
Display colors Monochrome M
Communication
The headphone jack 2.5 mm
Wireless connections No
Certificates
Certifications FCC (Part 15, Class B), CE Mark, A-Tick, C-Tick,  UL, CB
Weight & dimensions
Weight 900 g
Other properties
Voice Codecs G.711, G.722, G.726
Compatible with Mac No
Product dimensions (WxDxH) 214 x 212 x 44 mm
Ethernet LAN (RJ-45) 2
Full duplex Y
Internet connection Y
PoE support Y
