Description

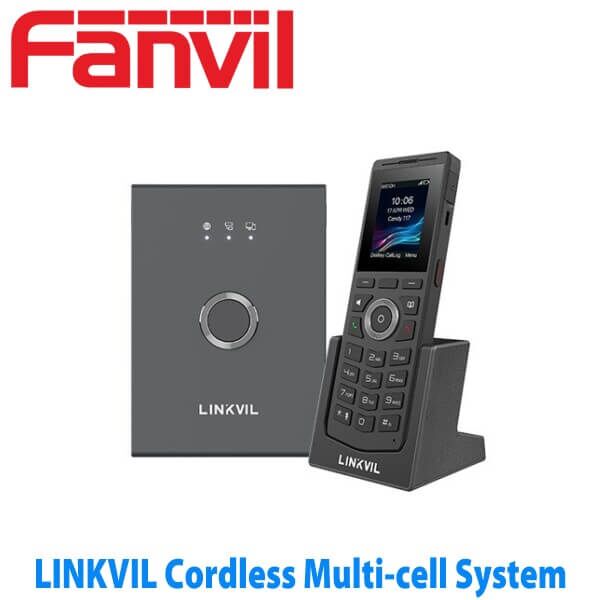

Fanvil LINKVIL Cordless Multi-cell System Kenya

The Fanvil LINKVIL Cordless Multi-cell System Kenya is a scalable wireless communication solution designed for large enterprises. Featuring the W710H Manager, it supports up to 20 base stations, 300 W610H handsets, 200 concurrent calls, and 300 SIP accounts. With seamless roaming, handover, and coverage of up to 100m indoors and 700m outdoors, it ensures reliable mobility. The system also offers LDAP/XML directories, 20,000 call logs, flexible provisioning (FTP/TFTP/HTTP/TR-069), and key network features like IPv6, VLAN, and VPN support—making it ideal for offices, healthcare, retail, and warehouses.

Accompanying the base station, the W610H cordless handset features a vibrant 2.0-inch 240×320 color screen, Bluetooth 5.0 connectivity, a 3.5mm headset jack, and a powerful 1900mAh battery providing up to 8 hours of talk time and 160 hours of standby. Designed for durability and performance, it supports HD audio, multiple voice codecs like Opus, G.722, and G.729, programmable DSS keys, a PTT (push-to-talk) button, and a multilingual user interface. With a drop resistance rating of up to 1.8 meters, the handset is built for demanding use cases. Both the base station and handset are internationally certified with CE, FCC, UKCA, and RoHS standards, ensuring reliability and global compliance. The Fanvil LINKVIL Cordless Multi-cell System Kenya system is engineered for smooth roaming between base stations and is equipped with powerful security and encryption technologies such as WPA2-PSK and SRTP, making it a professional-grade, future-proof solution for dynamic enterprise communication environments.

Product Highlights:

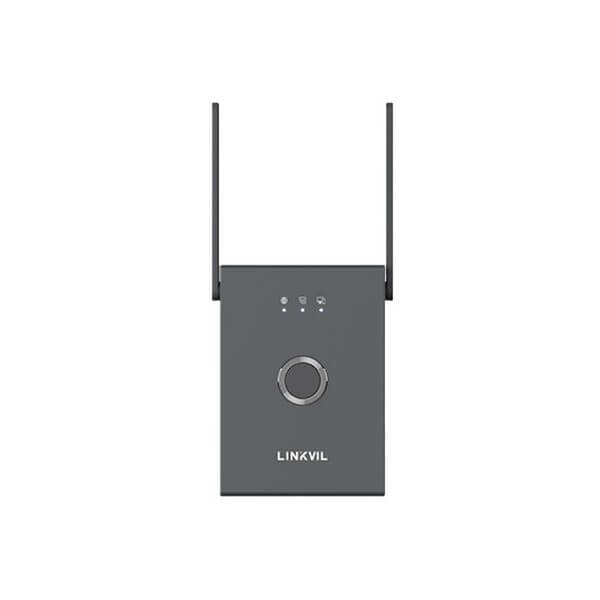

W710H Base Station (Multi‑cell System)

• Supports both single-cell and multi-cell modes via W710H Manager
• Multi-cell supports:
  • Up to 20 base stations
  • Up to 300 terminals (handsets)
  • Up to 200 simultaneous calls
  • Up to 300 SIP accounts/extensions
• Roaming coverage:
  • Indoor: up to 100 m
  • Outdoor: up to 700 m
• Supports XML/LDAP/Remote phonebook (up to 1,000 contacts per terminal), call logs (20,000 entries)
• Wireless encryption: WPA2‑PSK
• Network protocols: IPv4/6, VLAN, 802.1x, VPN, LLDP, CDP, etc.
• Deployment tools: auto-provision via FTP/TFTP/HTTP/SIP‑PnP/TR‑069; web management interface
• Hardware:
  • 10/100 Mbps Ethernet, PoE support
  • Operating –10 °C to +45 °C, storage –20 °C to +60 °C
  • Certifications: CE, FCC, RoHS, etc.

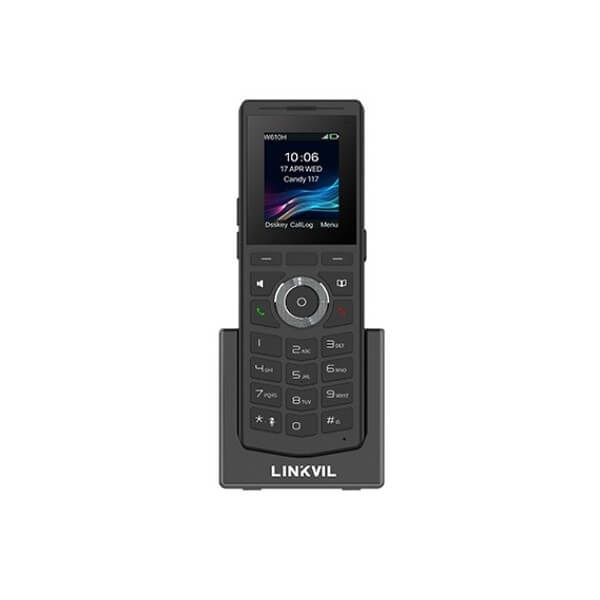

W610H Handset

• 2.0″ 240 × 320 color screen
• Bluetooth 5.0 for headsets + 3.5 mm jack
• 1,900 mAh rechargeable battery
  • Up to 8 hours talk, 160 hours standby
• HD voice, noise reduction, incoming vibration
• Supports:
  • 4 SIP lines, 1 internal extension
  • 16 programmable DSS keys, 1 PTT button
• Codec support: G.711, G.729 variants, iLBC, G.722, Opus
• Networking/protocols: 802.11ah (Wi‑Fi), WPA2‑PSK, SRTP, STUN, DHCP, HTTP/S, etc.
• Physical:
  • Drop tested to 1.8 m
  • Size: 156 × 53 × 17.7 mm; weight: 145 g
• Misc:
  • Supports 1,000 contacts, 600 call logs, SMS, voicemail, speed dial, DND, intercom, 3‑way conference
  • Multi-language UI
  • Certifications: CE/FCC/UKCA, RoHS, etc.
